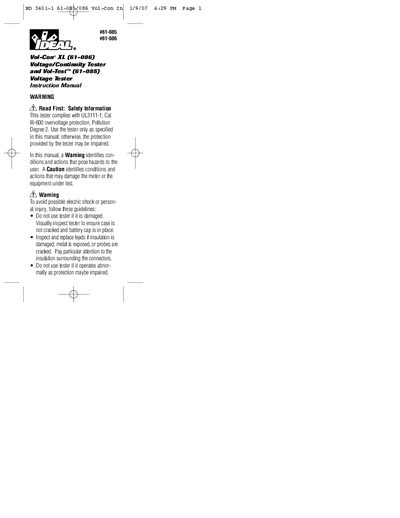

This document provides instructions and safety information for the Vol-Con® XL (61-086) Voltage/Continuity Tester and Vol-Test™ (61-085) Voltage Tester.
This document is the instruction manual for the IDEAL 61-085 Vol-Test Voltage Tester. It provides essential safety warnings regarding electrical shock and equipment damage, along with guidelines on proper usage such as duty cycles and environmental conditions.
The guide details how to measure AC and DC voltage, test for continuity (specifically noting features of the related model 61-086), and locate blown fuses or grounded sides in circuits. It also includes instructions for battery replacement and lists compatible accessories.
| Voltage Rating | 600V |
|---|---|
| Duty Cycle Ratio | 1:15 ON-OFF time |
| Maximum ON Time | 15 seconds |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -20°a 60°C (-4° Fa 140° F) |
| Altitude Limit | 2000 m |
| Battery Type | (4) 1.5V button-type batteries |
| Weight | 226.80 g (8 oz) |
You should perform a continuity test by touching the probe tips together before each use to verify functionality.
The tester requires four new 1.5V button-type batteries, such as IDEAL# 61-201 or IEC #LR44.
The tester is guaranteed against defects in material or workmanship for five years from the date of purchase.
