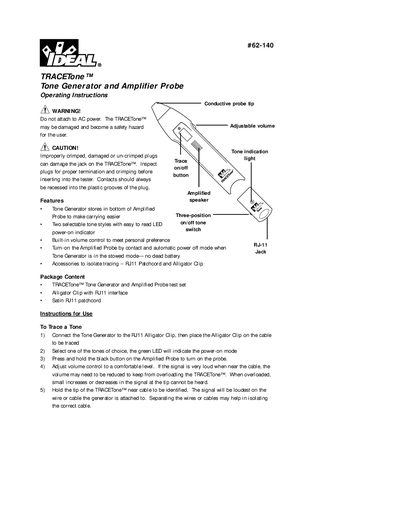

This manual introduces the working principle of TRACETone™ Tone Generator and Amplifier Probe and provides instructions for use.
The IDEAL TRACETone is a test set consisting of a Tone Generator and an Amplified Probe designed to help users locate and identify specific wires within a cable bundle. The device features two selectable tone styles (995Hz and 845Hz), adjustable volume control, and a built-in speaker for amplified audio output.
| Power Requirements | 4 x LR44 button cells (6 volts) |
|---|---|
| Battery life Generator | 100hrs |
| Tone frequencies | 995Hz and 845Hz alternating tones (+/-5%) |
| Externally applied voltage w/o damage | 250 volts peak DC or 175 volts RMS AC |
The device requires four LR44 button cells.
The generator battery lasts for 100 hours.
