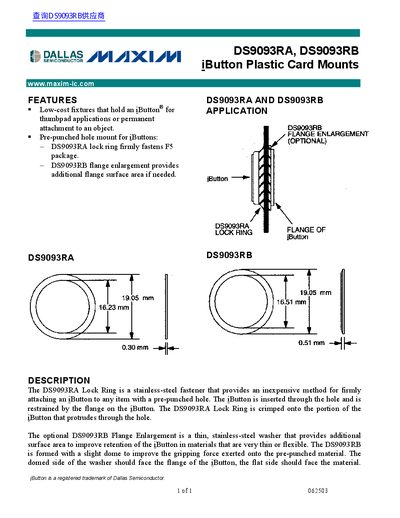

This document describes the DS9093RA and DS9093RB iButton mounting fixtures, which are used to securely attach an iButton to an object. The DS9093RA is a stainless-steel fastener that is crimped onto a pre-punched hole to secure the iButton. The DS9093RB is a thin stainless-steel washer that provides additional surface area to improve retention of the iButton in very thin or flexible materials.
The DS9093RA Lock Ring is a stainless-steel fastener designed to firmly attach an iButton to any item with a pre-punched hole. It crimps onto the portion of the iButton that protrudes through the hole.
The optional DS9093RB Flange Enlargement is a thin, stainless-steel washer that provides additional surface area to improve retention in very thin or flexible materials. It features a slight dome to enhance gripping force.
These low-cost fixtures hold an iButton for thumbpad applications or permanent attachment to an object.
The lock ring is crimped onto the portion of the iButton that protrudes through a pre-punched hole.
This thin, stainless-steel washer provides additional surface area to improve retention in very thin or flexible materials.
