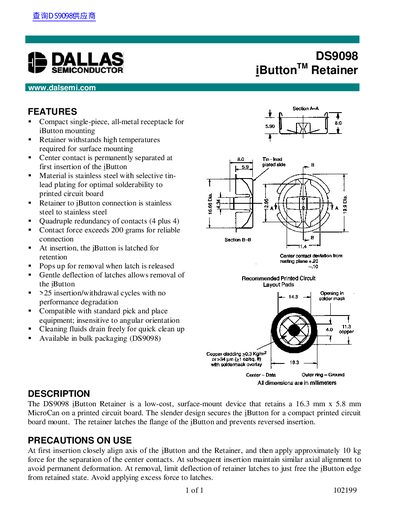

The DS9098 iButton Retainer is a low-cost, surface-mount device that retains a 16.3 mm x 5.8 mm MicroCan on a printed circuit board. The slender design secures the iButton for a compact printed circuit board mount. The retainer latches the flange of the iButton and prevents reversed insertion.
The DS9098 iButton Retainer is a low-cost, surface-mount device made of stainless steel with selective tin-lead plating. It is designed to retain a 16.3 mm x 5.8 mm MicroCan iButton on a printed circuit board with a compact design that secures the iButton and prevents reversed insertion.
Key features include a center contact that is permanently separated at first insertion, quadruple redundancy of contacts, and a contact force exceeding 200 grams. The device is compatible with standard pick and place equipment and is available in bulk packaging.
| Product Type | iButton Retainer |
|---|---|
| Compatible Button Size | 16.3 mm x 5.8 mm |
| Contact Force | Exceeds 200 grams |
| Packaging | Bulk packaging |
The retainer latches the flange of the iButton to prevent reversed insertion.
Yes, it is compatible with standard pick and place equipment and is insensitive to angular orientation.
