The product is a simple, low-cost adapter that converts RS232C (±12V) level conversion, allowing an iButton probe to be connected to the serial port of a computer so that a non- EPROM iButton can be read and written directly.

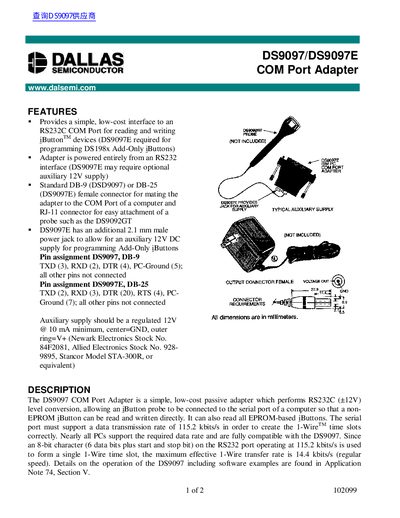

The Dallas Semiconductor DS9097 COM Port Adapter is a simple, low-cost passive adapter that performs RS232C level conversion. It allows an iButton probe to be connected to the serial port of a computer to read and write non-EPROM iButtons directly, as well as read all EPROM-based iButtons. The adapter is powered entirely from the RS232 interface and features a standard DB-9 female connector.
| Data transmission rate | 115.2 kbits/s |
|---|---|
| Maximum effective 1-Wire transfer rate | 14.4 kbits/s |
| Connector type DS9097 | DB-9 female |
| Connector type DS9097E | DB-25 female |
| Auxiliary supply voltage | 12V DC |
| Auxiliary supply current | 10 mA minimum |
The maximum effective 1-Wire transfer rate is 14.4 kbits/s.
Yes, the DS9097E is capable of supplying the 12 volts necessary to program the EPROM-based iButton products.
No, the adapter is powered entirely from an RS232 interface.
