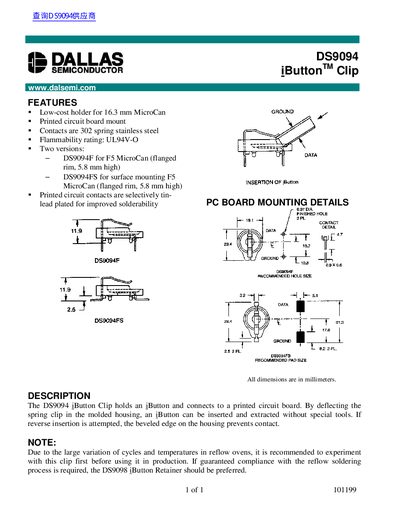

The DS9094 iButton Clip is a low-cost holder for 16.3 mm MicroCan, designed to be mounted on a printed circuit board. It features contacts made of 302 spring stainless steel and has a flammability rating of UL94V-O. There are two versions available: DS9094F for F5 MicroCan with a flanged rim, 5.8 mm high, and DS9094FS for surface mounting F5 MicroCan with a flanged rim, 5.8 mm high. The printed circuit contacts are selectively tin-lead plated for improved solderability.
The DS9094 iButton Clip is a low-cost holder designed for 16.3 mm MicroCan iButtons. It features printed circuit board mounting with contacts made of 302 spring stainless steel that are selectively tin-lead plated for improved solderability. The housing includes a flanged rim and a beveled edge to prevent reverse insertion.
| iButton Type | 16.3 mm MicroCan |
|---|---|
| Contact Material | 302 spring stainless steel |
| Flammability Rating | UL94V-O |
| Plating | selectively tin-lead plated |
The two versions are DS9094F for F5 MicroCan and DS9094FS for surface mounting F5 MicroCan.
An iButton can be inserted and extracted by deflecting the spring clip in the molded housing without special tools.
