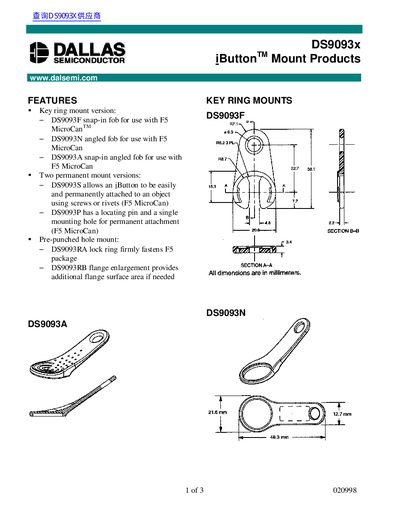

Dallas Semiconductor DS9093x iButton Mount Products Data Sheet

About this manual

The DS9093 iButton Mount Products offer low-cost fixtures designed to hold an iButton for thumbpad applications or permanent attachment to an object. The product line includes key ring mount versions (DS9093F, DS9093N, DS9093A) and two permanent mount versions (DS9093S, DS9093P).

What's inside

• Key Ring Mounts
• Permanent Mount Versions
• Pre-punched Hole Mount
• Lock Ring Application
• Flange Enlargement

Frequently asked questions

What is the purpose of the DS9093F plastic snap-in fob?

It offers a simple way to mount an iButton for applications that require only momentary contact and can be attached to a key ring.

How is the DS9093N angled fob used with an iButton?

The iButton is inserted into this fob by press-fitting, and it can only be used with the F5 MicroCan.

What colors are available for the DS9093A?

It is available in black, blue, green, red and yellow.
