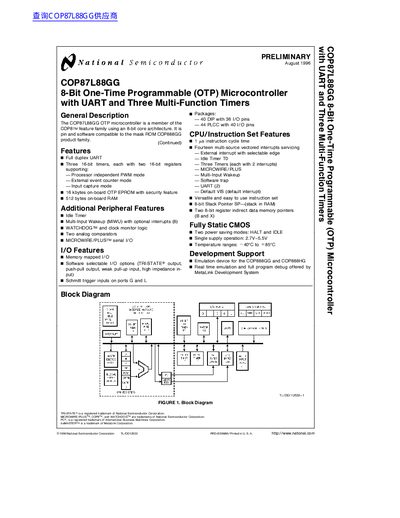

COP87L88GG OTP microcontroller is an 8-bit one-time programmable (OTP) microcontroller with UART and three multi-function timers
The document describes the COP87L88GG, a member of the COP8 family using an 8-bit core architecture. It is pin and software compatible with the mask ROM COP888GG product family. Key features include full duplex UART, three 16-bit timers supporting PWM, external event counting, and input capture modes, and 16 kbytes of on-board OTP EPROM.
| Instruction Cycle Time (Crystal) | 1 ms at 4.5V to 5.5V supply |
|---|---|
| Instruction Cycle Time (R/C Oscillator) | 3 ms at 4.5V to 5.5V supply |
| Operating Voltage Range | 2.7 V to 5.5 V |
| On-board OTP EPROM Size | 16 kbytes |
| On-board RAM Size | 512 bytes |
| Timer Count | Three 16-bit timers |
Yes, it is pin and software compatible to the mask ROM COP888GG product family.
The device is available in a 40-pin DIP package with 36 I/O pins or a 44-pin PLCC package with 40 I/O pins.
The device operates over a temperature range of -40°C to +85°C.
