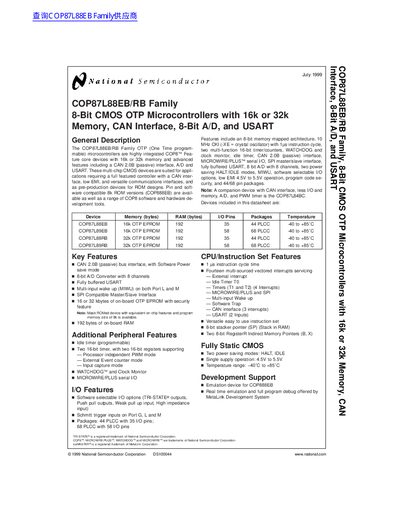

National Semiconductor COP87L88EB/RB Family 8-Bit CMOS OTP Microcontrollers Datasheet

COP87L88EB/RB Family 8-Bit CMOS OTP Microcontrollers with 16k or 32k Memory, CAN Interface, 8-Bit A/D, and USART

Brand: National Semiconductor
Category: microcontrollers
Document type: Datasheet
Language: English
Pages: 72
File format: PDF
File size: 848 KB
Published: 04 July, 2012
Updated: 30 September, 2023
Model: COP87L88EB
MD5 checksum: 28371EF0B46FAEB977D535D8580D35B5
PDF: National Semiconductor COP87L88EB/RB Family 8-Bit CMOS OTP Microcontrollers Datasheet PDF

About this manual

The COP87L88EB/RB Family consists of highly integrated One Time Programmable (OTP) microcontrollers with 16k or 32k memory. These devices are designed for applications requiring a full-featured controller with a CAN interface, low EMI, and versatile communications interfaces. They are available in 44-pin and 68-pin PLCC packages with operating temperatures from -40°C to +85°C.

What's inside

General Description
Basic Functional Description
Connection Diagrams
Absolute Maximum Ratings
DC Electrical Characteristics
AC Electrical Characteristics
On-Chip Voltage Reference

Specifications

Memory Size	16k or 32k OTP EPROM
RAM Size	192 bytes
Operating Voltage	4.5V to 5.5V
Temperature Range	-40°C to +85°C
Packages	44 or 68 Pin PLCC
A/D Converter	8-bit, 8 channels
CAN Interface	CAN 2.0B (passive)

Frequently asked questions

What is the memory size of the COP87L88EB/RB family?

The family includes devices with 16k or 32k OTP EPROM.

What are the operating voltage limits?

The device operates with a single supply voltage from 4.5V to 5.5V.

Does the microcontroller include an A/D converter?

Yes, it features an 8-bit A/D converter with 8 channels.
