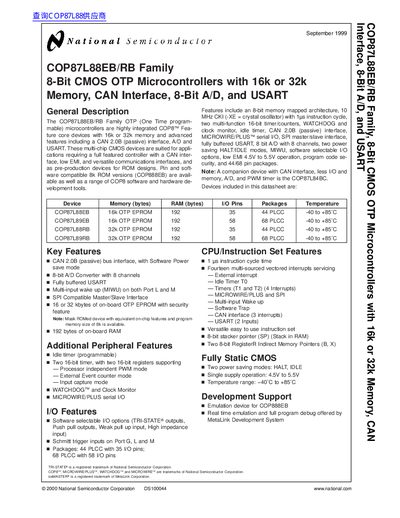

National semiconductor COP87L88EB/RB Family 8-Bit CMOS OTP Microcontrollers handbook

COP87L88EB/RB Family 8-Bit CMOS OTP Microcontrollers with 16k or 32k Memory, CAN Interface, 8-Bit A/D, and USART

Brand: National Semiconductor
Category: microcontrollers
Document type: Datasheet
Language: English
Pages: 72
File format: PDF
File size: 832 KB
Published: 04 July, 2012
Updated: 30 September, 2023
Model: COP87L88EB
MD5 checksum: 553FC6032F06DDF0F4591CB9AC360886
PDF: National semiconductor COP87L88EB/RB Family 8-Bit CMOS OTP Microcontrollers handbook PDF

About this manual

The COP87L88EB/RB Family consists of highly integrated One Time Programmable (OTP) microcontrollers featuring 16k or 32k memory, a CAN 2.0B interface, an 8-bit A/D converter with 8 channels, and a fully buffered USART. These devices are designed for applications requiring versatile communication interfaces and low EMI operation.

What's inside

General Description
Key Features
Basic Functional Description
Connection Diagrams
Absolute Maximum Ratings
DC Electrical Characteristics
AC Electrical Characteristics

Specifications

Instruction Cycle Time	1 µs
Operating Voltage	4.5V to 5.5V

Frequently asked questions

What are the operating voltage limits for this microcontroller?

The device operates with a single supply voltage ranging from 4.5V to 5.5V.

What is the maximum instruction cycle time for this chip?

The microcontroller has a 1 µs instruction cycle time when using a crystal oscillator.

How much RAM is included on the COP87L88EB and COP87L89RB models?

Both the COP87L88EB and COP87L89RB devices include 192 bytes of on-board static RAM.
