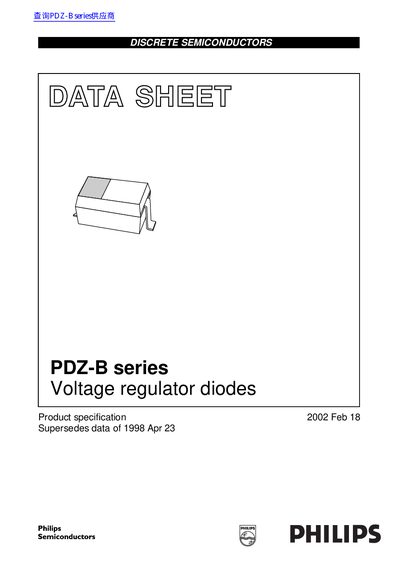

The data sheet introduces the PDZ-B series voltage regulator diodes, including product features, applications, models, and packages.
The document is a product specification for the PDZ-B series of discrete semiconductor voltage regulator diodes. These devices are designed for general voltage regulation applications and feature a small plastic SOD323 surface-mount package. The series offers a wide variety of voltage ranges from 2.4V to 36V with a tolerance of approximately +2%.
| Total power dissipation | max. 400 mW |
|---|---|
| Voltage ranges | nom. 2.4 to 36 V |
| Tolerance | approximately +2% |
| Package type | SOD323 |
| Storage temperature | -65 to +150 °C |
| Junction temperature | 150 °C |
The maximum total power dissipation is 400 mW when the ambient temperature is 25 °C.
The maximum continuous forward current is 200 mA.
The maximum junction temperature is 150 °C.
