LM317 is an adjustable 3-terminal positive voltage regulator capable of supplying in excess of 1.5A over an output voltage range of 1.2V to 37V. This voltage regulator is exceptionally easy to use and requires only two external resistors to set the output voltage. Further, it employs internal current limiting, thermal shutdown and safe area compensation, making it essentially blow-out proof. The LM317 serves a wide variety of applications including local, on card regulation. This device can also be used to make a programmable output regulator, or by connecting a fixed resistor between the adjustment and output, the LM317 can be used as a precision current regulator.

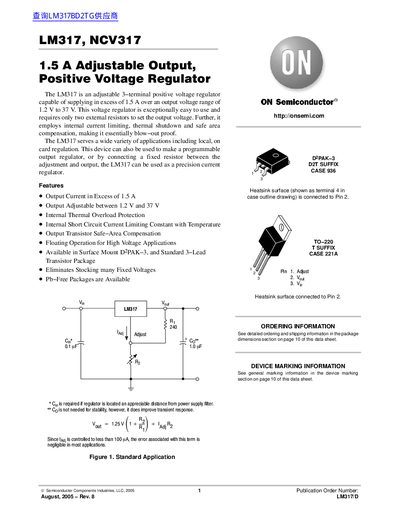

This document is a technical datasheet for the LM317 and NCV317 adjustable 3-terminal positive voltage regulators. The devices are capable of supplying in excess of 1.5 A over an output voltage range of 1.2 V to 37 V. Key features include internal thermal overload protection, short circuit current limiting, and safe area compensation.
| Output Current | In Excess of 1.5 A |
|---|---|
| Output Voltage Range | 1.2 V to 37 V |
| Input-Output Voltage Differential | 40 V |
| Operating Junction Temperature Range | -55 to +150 °C |
| Adjustment Pin Current | 50 to 100 pA |
The device is capable of supplying in excess of 1.5 A.
The output voltage is adjustable between 1.2 V and 37 V.
