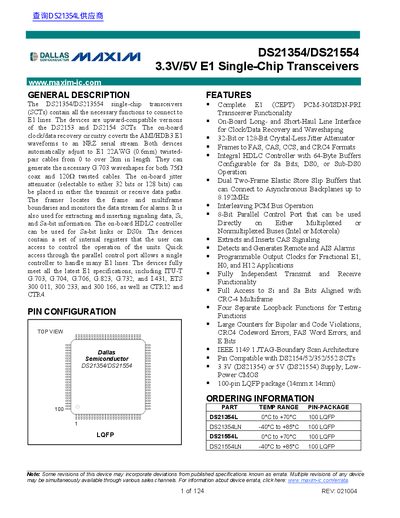

DS21354/DS213554 single-chip transceivers (SCTs) contain all the necessary functions to connect to E1 lines. The devices are upward-compatible versions of the DS2153 and DS2154 SCTs. The on-board clock/data recovery circuitry coverts the AMI/HDB3 E1 waveforms to an NRZ serial stream. Both devices automatically adjust to E1 22AWG (0.6mm) twisted- pair cables from 0 to over 2km in length. They can generate the necessary G.703 waveshapes for both 75� coax and 120� twisted cables. The on-board jitter attenuator (selectable to either 32 bits or 128 bits) can be placed in either the transmit or receive data paths. The framer locates the frame and multiframe boundaries and monitors the data stream for alarms. It is also used for extracting and inserting signaling data, Si, and Sa-bit information. The on-board HDLC controller can be used for Sa-bit links or DS0s. The devices contain a set of internal registers that the user can access to control the operation of the units. Quick access through the parallel control port allows a single controller to handle many E1 lines. The devices fully meet all the latest E1 specifications, including ITU-T G.703, G.704, G.706, G.707, G.803 and G.803.1.
The DS21354 and DS21554 are single-chip transceivers (SCTs) designed to connect to E1 lines. These devices contain all necessary functions for PCM-30/ISDN-PRI transceiver functionality, including on-board clock/data recovery and waveshaping circuits. They support twisted-pair cables up to 2km in length and can generate G.703 waveshapes for both coaxial and twisted pair cables.
| Supply Voltage | 3.3V (DS21354) or 5V (DS21554) |
|---|---|
| Package Type | 100-pin LQFP |
| Operating Temperature Range | -40°C to +85°C |
| Jitter Attenuator Size | 32-Bit or 128-Bit |
The devices are available in a 100-pin LQFP package measuring 14mm x 14mm.
Yes, they provide complete E1 CEPT PCM-30/ISDN-PRI Transceiver Functionality.
