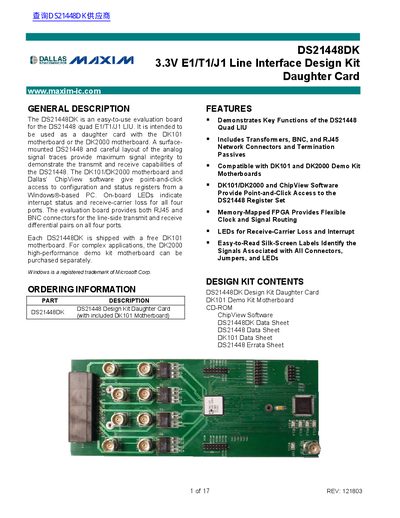

The DS21448DK is an easy-to-use evaluation board for the DS21448 quad E1/T1/J1 LIU. It is intended to be used as a daughter card with the DK101 motherboard or the DK2000 motherboard. A surface-mounted DS21448 and careful layout of the analog signal traces provide maximum signal integrity to demonstrate the transmit and receive capabilities of the DS21448. The DK101/DK2000 motherboard and Dallas’ ChipView software give point-and-click access to configuration and status registers from a Windows�-based PC. On-board LEDs indicate interrupt status and receive-carrier loss for all four ports. The evaluation board provides both RJ45 and BNC connectors for the line-side transmit and receive differential pairs on all four ports. Each DS21448DK is shipped with a free DK101 motherboard. For complex applications, the DK2000 high-performance demo kit motherboard can be purchased separately.
The DS21448DK is a 3.3V E1/T1/J1 Line Interface Design Kit Daughter Card intended for use with the DK101 or DK2000 motherboard. It features an on-board DS2148 quad LIU, surface-mounted components, and provides RJ45 and BNC connectors for all four ports to demonstrate transmit and receive capabilities.
The kit includes transformers, network connectors, passives, and a memory-mapped FPGA for flexible clock routing. On-board LEDs indicate interrupt status and receive-carrier loss. The board is controlled via the ChipView software running on a Windows-based PC.
| Operating Voltage | 3.3V |
|---|---|
| Temperature Range | 0°C to +70°C |
| Compatible Motherboards | DK101 and DK2000 |
The DS21448DK is intended to be used as a daughter card with the DK101 motherboard or the DK2000 motherboard.
The evaluation board provides both RJ45 and BNC connectors for the line-side transmit and receive differential pairs.
The kit includes ChipView software which gives point-and-click access to configuration and status registers.
