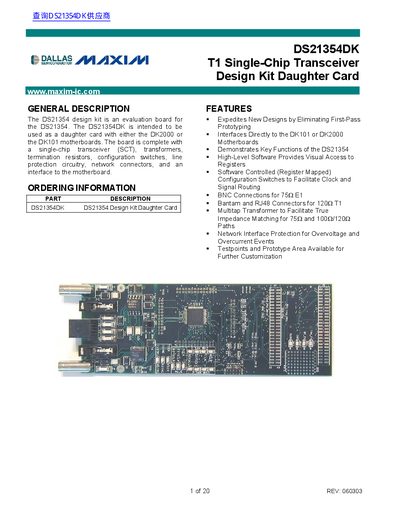

DS21354DK T1 Single-Chip Transceiver Design Kit Daughter Card is an evaluation board launched by Maxim company for evaluating the DS21354 chip. The board includes a single-chip transceiver (SCT), transformers, termination resistors, configuration switches, line protection circuitry, network connectors, and a motherboard interface.
The DS21354DK is a design kit daughter card intended for use with the DK101 or DK2000 motherboards. It features a single-chip transceiver (SCT), transformers, termination resistors, configuration switches, and network connectors. The board includes protection circuitry for overvoltage and overcurrent events and provides testpoints for customization.
| Operating Temperature | 0°C to +70°C |
|---|---|
| Connector Type | BNC, Bantam, RJ48 |
| Supported Motherboards | DK101 or DK2000 |
The DS21354DK is intended to be used as a daughter card with either the DK2000 or the DK101 motherboards.
The host application named ChipView.exe is used to launch the program and access registers.
