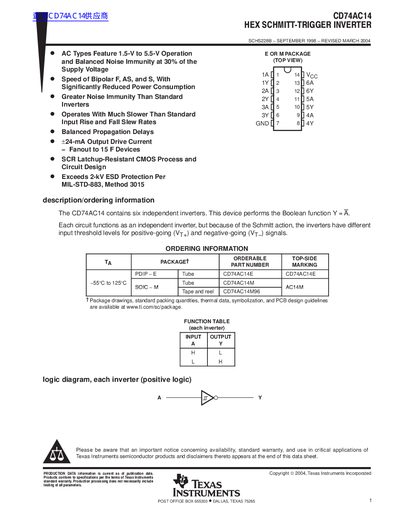

Introduces the features and characteristics of CD74AC14
The document describes the CD74AC14, a hex Schmitt-trigger inverter containing six independent inverters. Key features include 1.5-V to 5.5-V operation, balanced noise immunity at 30% of supply voltage, and significantly reduced power consumption compared to standard bipolar devices.
| Supply Voltage Range | 1.5 V to 5.5 V |
|---|---|
| Number of Inverters | Six independent inverters |
| Output Drive Current (High) | -24 mA to -50 mA |
| ESD Protection | Exceeds 2-kV per MIL-STD-883 |
| Operating Temperature Range (E Package) | -55°C to +125°C |
The device contains six independent inverters.
The device operates with a supply voltage between 1.5 V and 5.5 V.
The device provides a +24-mA output drive current.
