In this study, an established HPLC method for USP Pheno-barbital was sequentially and quickly improved to a high throughput method using Rapid Resolution (RR) and Rapid Resolution High Throughput (RRHT) techniques. New RRHT column technology is an especially powerful tool for improving lab productivity by reducing HPLC analysis time dramatically. Starting with a proven rugged method, conversion to a high throughput method can be achieved simply by replacing the original analytical-sized column with either a RR or RRHT column. The reasons for this direct conversion include the similar selectivity of smaller 1.8- and 3.5-µm particles compared to larger 5-µm particles, and an engineered particle size distribution that reduces unacceptably high system pressures that may be experienced with other sub-two micron packings.

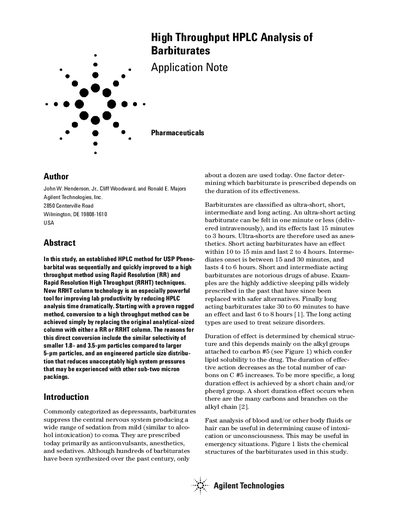

The document details a study by Agilent Technologies on optimizing High Performance Liquid Chromatography (HPLC) methods for the analysis of barbiturates. The authors demonstrate how an existing method for phenobarbital can be converted into a high-throughput method by replacing standard analytical columns with Rapid Resolution (RR) or Rapid Resolution High Throughput (RRHT) columns.
The text explains that RR and RRHT technologies utilize smaller particle sizes (1.8 µm and 3.5 µm) compared to traditional 5 µm particles, allowing for significantly faster analysis times while maintaining resolution. The note provides specific examples of column dimensions, particle sizes, and resulting analysis times, along with data on selectivity factors and peak widths to validate the scalability of these methods.
| Original USP Column Dimensions | 4.6-mm x 250-mm |
|---|---|
| RRHT Column Particle Size | 1.8 µm |
| Analysis Time (Original) | about 32 minutes |
| Analysis Time (RR Column) | 13 min |
| Analysis Time (RRHT Column) | 7 min |
The study uses Rapid Resolution (RR) and Rapid Resolution High Throughput (RRHT) techniques.
Replacing the original analytical-sized column with RR or RRHT columns reduces analysis time dramatically while maintaining similar selectivity.
