The ST300S series is a 300-ampere thyristor produced by IRF. It uses TO-209AE (TO-118) packaging, with a center amplifying gate, a ceramic insulator, and a compression bonded package. It is suitable for various load switching control applications such as DC motor control, DC power supply control, and AC control.

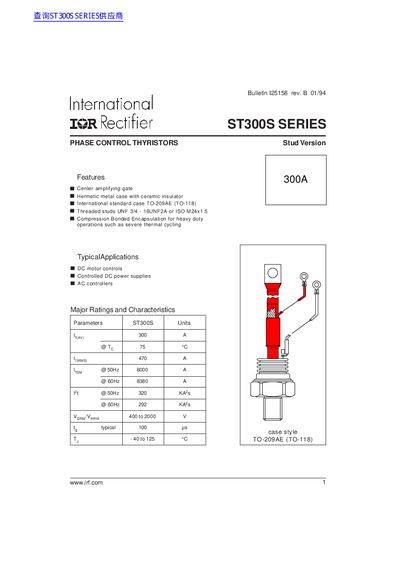

This document provides technical specifications for the International Rectifier ST300S Series, which consists of 300A Phase Control Thyristors in a stud version. The devices feature a hermetic metal case with a ceramic insulator and utilize compression bonded encapsulation for heavy-duty operations involving severe thermal cycling. They are designed for applications such as DC motor controls, controlled DC power supplies, and AC controllers.
| Average On-state Current | 300 A |
|---|---|
| Max. RMS on-state current | 470 A |
| Case style | TO-209AE (TO-118) |
| Approximate weight | 535 g |
Typical applications include DC motor controls, controlled DC power supplies, and AC controllers.
The devices use a hermetic metal case with a ceramic insulator in the TO-209AE (TO-118) style.
