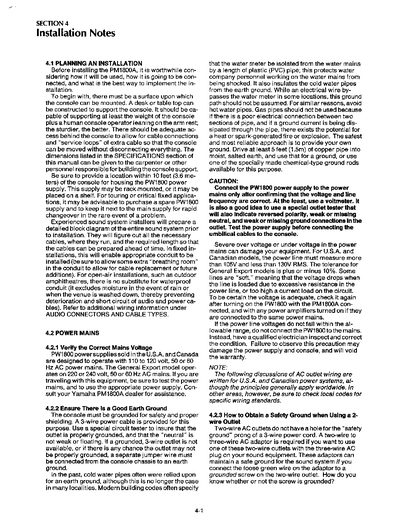

This document provides installation instructions specifically for the Yamaha PM1800A console. It details how to plan the physical mounting of the console, including requirements for the support surface and cable management. The guide emphasizes the importance of having adequate access behind the unit for service loops.
The text extensively covers electrical safety and power distribution. It instructs users on verifying mains voltage (110-120V for US/Canada models), ensuring a proper earth ground, and handling scenarios with two-wire outlets or improperly wired AC outlets such as lifted grounds or neutrals.
The location should be within 10 feet (3.6 meters) of the console.
The power line must measure more than 105V and less than 130V RMS.
Connect the loose green wire on the adaptor to a grounded screw on the two-wire outlet.
