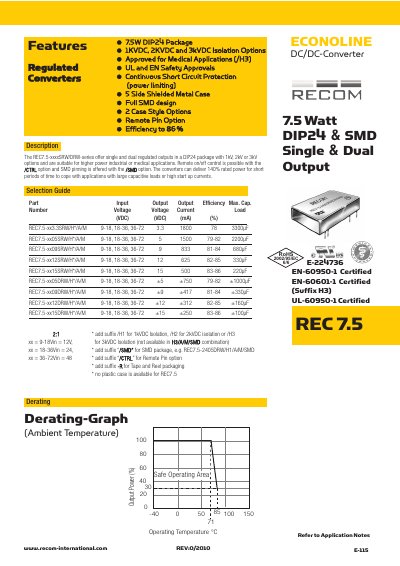

This datasheet is about the specifications of ECONOLINE DC/DC-Converter REC 7.5, including input voltage, output voltage, output current, maximum load, efficiency, maximum capacitance, etc. This product supports 1KVDC, 2KVDC and 3KVDC isolation, and has UL and EN safety certifications.
The REC 7.5 series is a regulated DC/DC converter offered in 7.5 W DIP24 and SMD packages. It supports single‑output or dual‑output configurations with selectable output voltages of 3.3 V, 5 V, 9 V, 12 V and 15 V, and provides isolation options of 1 kVDC, 2 kVDC or 3 kVDC. Features include continuous short‑circuit protection, high efficiency up to 86 %, and a shielded metal case.
The device is certified for industrial and medical use (EN 60601‑1, UL 60950‑1) and operates from a wide input range (9‑18 V, 18‑36 V, 36‑72 V). It delivers up to 1.8 A at 3.3 V and includes options such as remote‑pin control and tape‑and‑reel packaging.
| Input Voltage Range | 9‑18 V, 18‑36 V, 36‑72 V |
|---|---|
| Operating Temperature Range | -40 °C to +71 °C |
| No‑Load Power Consumption | 300 mW max |
| Package Weight | 16 g |
The converter can reach up to 86 % efficiency at full load.
It is available in a 24‑pin DIP24 package and a 24‑pin SMD package, with optional remote‑pin control and tape‑and‑reel packaging.
