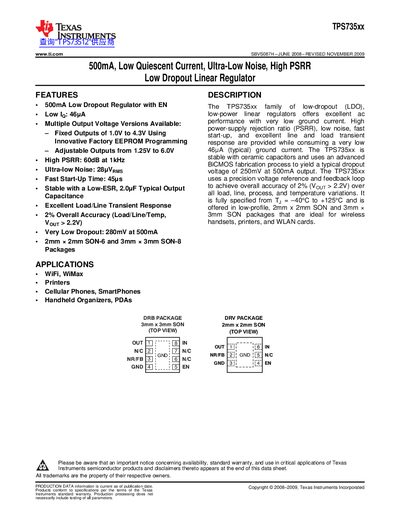

TPS735xx low-dropout linear regulators provide 500mA output current with low quiescent current, ultra-low noise and high PSRR
The TPS735xx family of low-dropout (LDO) linear regulators offers excellent AC performance with very low ground current. These devices feature a typical dropout voltage of 250mV at 500mA output and are stable with ceramic capacitors. They are available in fixed output voltage versions from 1.0V to 4.3V and adjustable versions from 1.25V to 6.0V.
| Output Current | 500mA |
|---|---|
| Ground Current | 46uA (typical) |
| Power-Supply Rejection Ratio | 60dB at 1kHz |
| Output Accuracy | 2% |
| Dropout Voltage | 280mV at 500mA |
| Package Types | 2mm x 2mm SON and 3mm x 3mm SON |
The typical dropout voltage is 250mV at 500mA output.
Yes, the TPS735xx is stable with ceramic capacitors and uses a typical output capacitance of 2.0uF.
