The TPIC5203 is a high voltage switch transistor produced by Texas Instruments. It has a maximum output voltage of 60V and a maximum output current of 8A.

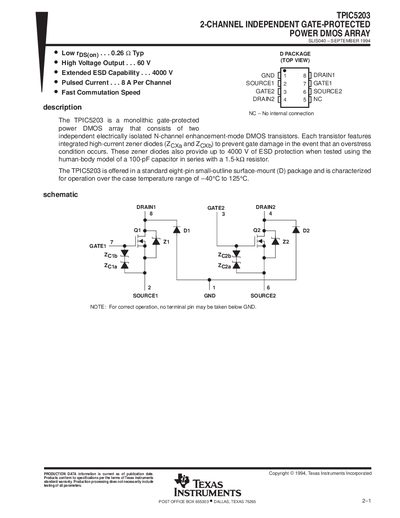

The TPIC5203 is a monolithic gate-protected power DMOS array consisting of two independent electrically isolated N-channel enhancement-mode DMOS transistors. Each transistor includes integrated high-current zener diodes to prevent gate damage during overstress conditions and provides up to 4000 V of ESD protection.
The device is offered in a standard eight-pin small-outline surface-mount (D) package and is characterized for operation over the case temperature range of -40°C to 125°C. It features fast commutation speed and pulsed current capabilities of up to 8 A per channel.
| ESD protection capability | 4000 V |
|---|---|
| Operating case temperature range | -40°C to 125°C |
| Package type | Eight-pin small-outline surface-mount (D) |
They prevent gate damage if an overstress condition occurs and provide up to 4000 V of ESD protection.
It consists of two independent electrically isolated N-channel enhancement-mode DMOS transistors.
