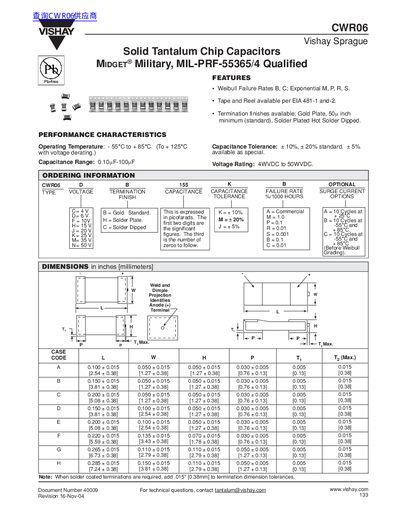

This document introduces Vishay Sprague's MIDGET® military solid tantalum chip capacitors, which are MIL-PRF-55365/4 qualified. They have various failure rates and termination finishes available, with an operating temperature range of -55°C to +85°C.
The document provides a comprehensive overview of the Vishay CWRO6 series of solid tantalum chip capacitors. It highlights key features such as Pb-free construction, availability in tape and reel formats, and various termination finishes including gold plate and solder plated options.
Detailed technical data is presented for different voltage ratings ranging from 4V to 50VDC. The datasheet includes standard ratings tables specifying capacitance values, case codes, maximum dissipation factors, leakage currents, and equivalent series resistance (ESR) at various temperatures.
| Operating Temperature Range | -55°C to +85°C (derated to +125°C) |
|---|---|
| Capacitance Range | 0.10uF-100uF |
| Voltage Rating Range | 4WVDC to 50WVDC |
| Capacitance Tolerance Options | +10%, +20% standard; +5% special |
The standard tolerances are +10% and +20%, with a +5% option available as special.
Yes, the document lists 'Pb-free' under the features section.
