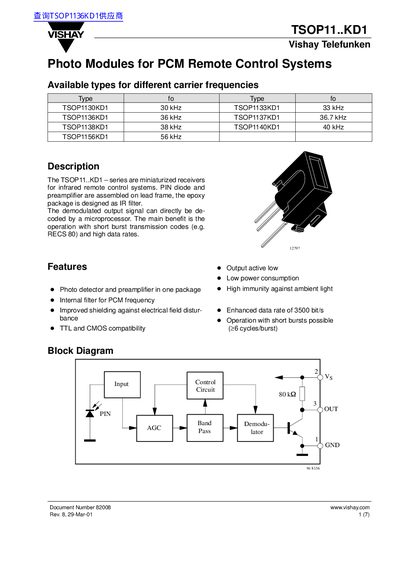

This document provides information about Vishay Telefunken's TSOP11..KD1 series of infrared remote control systems. The series consists of miniaturized receivers with a PIN diode and preamplifier, and an IR filter integrated in the epoxy package. The demodulated output signal can be directly decoded by a microprocessor. The main features of this product include operation with short burst transmission codes (e.g. RECS 80) and high data rates.
The TSOP 11..KD1 series consists of miniaturized infrared receivers for PCM remote control systems. These modules integrate a PIN diode and preamplifier on a lead frame within an epoxy package that acts as an IR filter. The demodulated output signal is active low and can be directly decoded by a microprocessor, supporting high data rates up to 3500 bit/s and operation with short burst transmission codes.
| Supply Voltage | 4.5 ... 5.5 V |
|---|---|
| Operating Temperature Range | -25 ... +85 °C |
| Junction Temperature | 100 °C |
| Enhanced Data Rate | 3500 bit/s |
| Output Type | Active low |
Yes, it supports formats such as NEC Code, Toshiba Micom Format, Sharp Code, RC5 Code, RC6 Code, RCMM Code, R-2000 Code, and RECS-80 Code.
The TSOP 11..KD1 series are miniaturized receivers for infrared remote control systems.
The device offers an enhanced data rate of 3500 bit/s.
The operating temperature range is from -25 to +85 °C.
