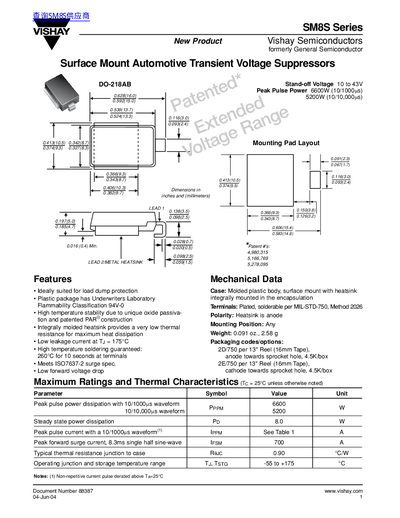

The SM8S Series is Vishay Semiconductors’ (formerly General Semiconductor’s) new line of Surface Mount Automotive Transient Voltage Suppressors, with Stand-off Voltages from 10 to 43V, Peak Pulse Power of 6600W (10/1000µs) and 5200W (10/10,000µs)
This document provides technical specifications for the Vishay SMB8S Series of Surface Mount Automotive Transient Voltage Suppressors. These components are designed for load dump protection with a stand-off voltage range of 10 to 43V and a peak pulse power dissipation of up to 6600W.
| Stand-off Voltage Range | 10 to 43V |
|---|---|
| Peak Pulse Power (10/1000us) | 6600W |
| Package Type | DO-218AB |
| Operating Junction Temperature Range | -55 to +175 °C |
| Compliance Standard | ISO7637-2 |
The heatsink serves as the anode.
Yes, it features a molded plastic body with an integrally mounted heatsink.
