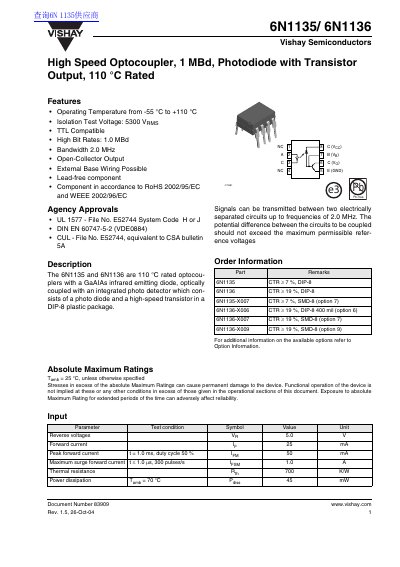

The 6N1135 and 6N1136 are 110 °C rated optocouplers with a GaAIAs infrared emitting diode, optically coupled with an integrated photo detector which consists of a photo diode and a high-speed transistor in a DIP-8 plastic package. Signals can be transmitted between two electrically separated circuits up to frequencies of 2.0 MHz. The potential difference between the circuits to be coupled should not exceed the maximum permissible reference voltages
The document describes the Vishay 6N1135 and 6N1136, which are 110 °C rated optocouplers utilizing a GaAlAs infrared emitting diode coupled to an integrated photo detector consisting of a photodiode and high-speed transistor. These devices are housed in a DIP-8 plastic package.
| Operating Temperature Range | -55 °C to +110 °C |
|---|---|
| Isolation Test Voltage | 5300 VRMS |
| Bandwidth | 2.0 MHz |
| Output Type | Open-Collector Output |
| Package Type | DIP-8 plastic package |
The devices are rated for an ambient temperature range from -55 °C to +110 °C.
Signals can be transmitted between two electrically separated circuits up to frequencies of 2.0 MHz.
Yes, they are described as a Lead-free component in accordance with RoHS and WEEE directives.
