TLMH3101 is an SMD LED with exceptional brightness, designed for applications requiring narrow brightness selection. It is packaged in P-LCC-2 and features a low profile and non-diffused lens, making it excellent for coupling with light pipes and backlighting.

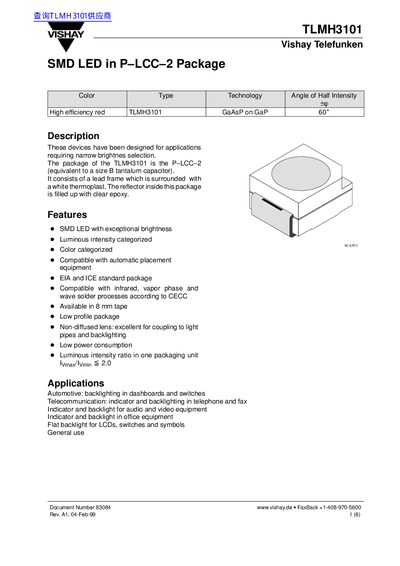

This document is a datasheet for the Vishay TLMH3101, an SMD LED manufactured by Vishay Telefunken. The device features a P-LCC-2 package equivalent to a size B tantalum capacitor and utilizes GaAsP on GaP technology to produce high-efficiency red light with a 60° viewing angle.
The datasheet provides absolute maximum ratings, including a DC forward current of 30 mA and an operating temperature range from -40°C to +100°C. It also lists optical characteristics such as a dominant wavelength between 612 nm and 625 nm at 10 mA test conditions.
| Technology | GaAsP on GaP |
|---|---|
| Package Type | P-LCC-2 |
| DC Forward Current | 30 mA |
| Reverse Voltage | 6 V |
| Dominant Wavelength | 612 to 625 nm |
| Operating Temperature Range | -40 to +100 °C |
The device supports a DC forward current of up to 30 mA when the ambient temperature is 60°C.
The LED can operate in an ambient temperature range from -40 to +100 °C.
The device emits a dominant wavelength between 612 and 625 nm when driven at 10 mA.
