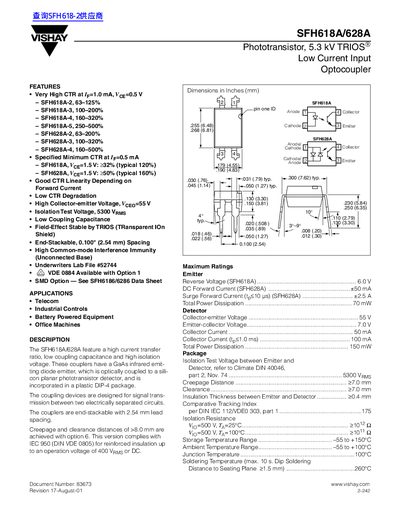

This datasheet provides detailed information on the SFH618A/628A couplers, including features, applications, specifications, characteristics, charts and pinouts.
The SFH618A and SFH628A are optocouplers designed for signal transmission between two electrically separated circuits. They feature a GaAs infrared emitting diode emitter optically coupled to a silicon planar phototransistor detector, housed in a plastic DIP-4 package. These devices are specified for high current transfer ratio (CTR) and low coupling capacitance.
| Collector-emitter Voltage | 55 V |
|---|---|
| Package Type | DIP-4 |
| End-Stackable Spacing | 2.54 mm |
| Emitter Reverse Voltage | 6.0 V |
| Collector Current | 50 mA |
| Storage Temperature Range | -55 to +150°C |
They are designed for Telecom, Industrial Controls, Battery Powered Equipment, and Office Machines.
The typical CTR for the SFH618A-5 is 300% at 1.0 mA input current.
Yes, the device is Field-Effect Stable by TRIOS (TRansparent Ion Shield).
