ADCMP350/ADCMP352/ADCMP354/ADCMP356 are comparator and reference circuits suitable for use in general-purpose applications. The high voltage input and output structures will allow voltage detectors, microprocessor systems, computers, battery monitors, intelligent instruments and portable equipment applications.

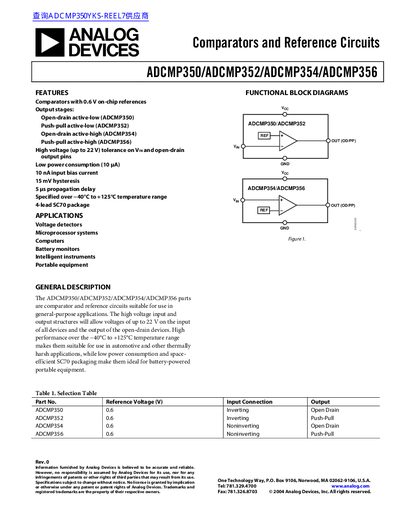

This document is a datasheet for the Analog Devices ADCMP350, ADCMP352, ADCMP354, and ADCMP356 comparator and reference circuits. These devices feature 0.6V on-chip references and are designed for general-purpose applications including voltage detection and microprocessor systems. They offer high voltage tolerance up to 22V on inputs and specific outputs, making them suitable for automotive and thermally harsh environments.
| Operating Voltage Range | 2.25 V to 5.5 V |
|---|---|
| Input Operating Voltage Range | 22 V |
| Supply Current | 10 nA |
| Propagation Delay | 5 us |
| Operating Temperature Range | -40°C to +125°C |
The devices tolerate voltages up to 22 V on the input.
The supply current is 10 nA.
