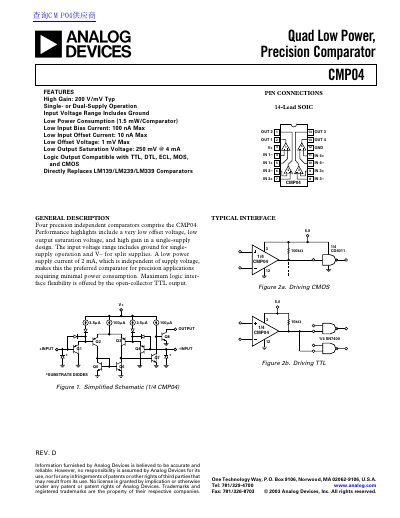

The CMP04 is a low-power precision comparator from Analog Devices with high gain, single-supply or dual-supply operation, input voltage range includes ground, low power consumption, low input bias current, low input offset current, low offset voltage, and low output saturation voltage.
The CMP04 is a monolithic integrated circuit containing four independent precision comparators. Key features include high voltage gain (200 V/mV typical), very low input offset voltage (1 mV max for standard version, 2 mV max for FS version), and low power consumption of approximately 2 mA per comparator. The device supports both single- and dual-supply operation with an input voltage range that includes ground.
| Input Offset Voltage (Standard) | 1 mV Max |
|---|---|
| Voltage Gain | 200 V/mV Typ |
| Supply Current (Standard) | 2 mA |
The maximum input offset voltage is 1 mV.
Yes, it has open-collector TTL output compatibility.
Yes, it supports both single- or dual-supply operation.
