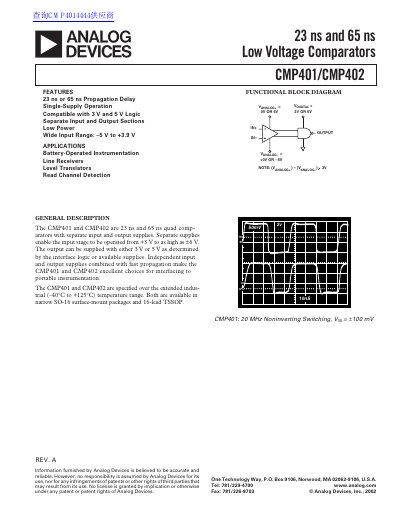

The CMP401 and CMP402 are 23 ns and 65 ns quad comparators with separate input and output supplies. Separate supplies enable the input stage to be operated from +3 V to as high as ±6 V. The output can be supplied with either 3 V or 5 V as determined by the interface logic or available supplies.
The CMP401 and CMP402 are quad comparators with separate input and output supplies. This design allows the input stage to operate from +3 V up to +6 V, while the output can be supplied with either 3 V or 5 V logic levels.
These devices are specified over an extended industrial temperature range of -40°C to +125°C and are available in narrow SO-16 surface-mount packages and 16-lead TSSOP. They are designed for applications such as battery-operated instrumentation, line receivers, level translators, and read channel detection.
| Propagation Delay (CMP401) | 23 ns typical |
|---|---|
| Propagation Delay (CMP402) | 65 ns typical |
| Operating Temperature Range | -40°C to +125°C |
| Package Types | SO-16, TSSOP |
| Offset Voltage (Typical) | 3 mV |
The CMP401 has a typical propagation delay of 23 ns, while the CMP402 is 65 ns.
Yes, they feature separate input and output sections to enable independent supply voltages.
