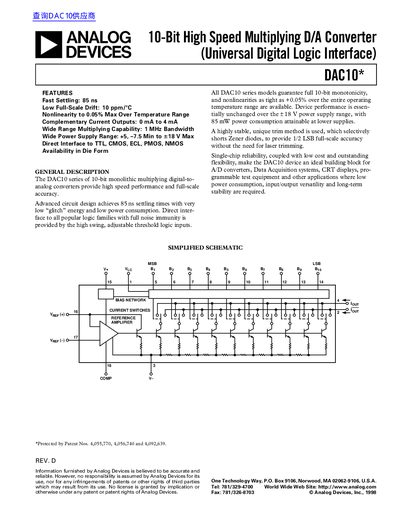

This document is the product manual for the DAC10 series of 10-bit monolithic multiplying digital-to-analog converters. It introduces the features and usage methods of the product.
The DAC10 series consists of 10-bit monolithic multiplying digital-to-analog converters designed for high speed performance and full-scale accuracy. The device features advanced circuit design achieving 85 ns settling times with very low glitch energy and low power consumption. It provides a direct interface to all popular logic families, including TTL, CMOS, ECL, PMOS, and NMOS, ensuring full noise immunity.
| Resolution | 10 Bits |
|---|---|
| Settling Time | 85 ns |
| Nonlinearity | 0.05% Max |
| Output Current Range | 0 mA to 4 mA |
| Bandwidth | 1 MHz |
| Power Supply Range | +5, –7.5 Min to 618 V Max |
| Logic Interface | TTL, CMOS, ECL, PMOS, NMOS |
| Monotonicity | 10 Bits |
| Output Capacitance | 18 pF |
The DAC10 series achieves 85 ns settling times.
It provides a direct interface to TTL, CMOS, ECL, PMOS, and NMOS.
The nonlinearity is a maximum of 0.05% over the temperature range.
The device provides complementary current outputs ranging from 0 mA to 4 mA.
