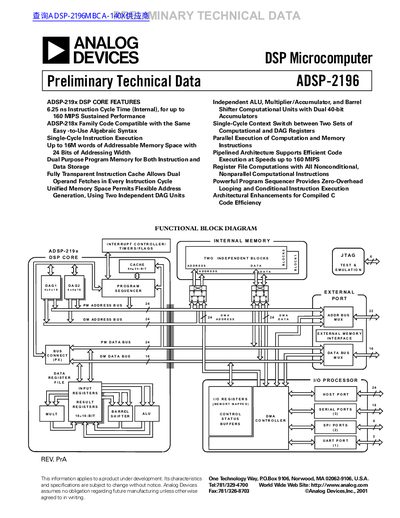

Analog Devices ADSP-2196 DSP Microcomputer Preliminary Technical Data Sheet

About this manual

This document provides preliminary technical data for the ADSP-2196 DSP Microcomputer. Key features include a 6.25 ns instruction cycle time supporting up to 160 MIPS sustained performance, dual-purpose program memory, and fully transparent instruction cache allowing dual operand fetches in every cycle.

The device includes 16K words of on-chip RAM (configured as 8K words 24-bit and 8K words 16-bit) and 16K words of on-chip 24-bit ROM. It features three full-duplex multichannel serial ports supporting H.100 standards, two SPI-compatible ports with DMA capability, and one UART port. The chip operates at 2.5 V internally with 3.3 V compliant I/O and is available in 144-lead LQFP and Mini-BGA packages.
