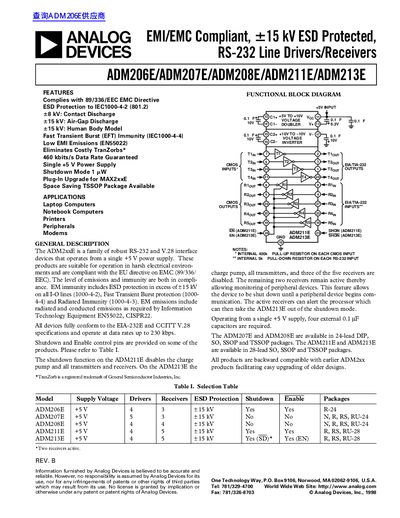

This document describes an EMI/EMC compliant RS-232 line driver/receiver product. The product features 15 kV ESD protection, compliance with the 89/336/EEC EMC Directive, high-speed data transfer, low EMI emissions, and is suitable for applications such as laptop computers.
The ADM2xxE family consists of robust RS-232 and V.28 interface devices that operate from a single +5 V power supply. These products are designed for operation in harsh electrical environments and are compliant with the EU directive on EMC (89/336/EEC). They provide ESD protection in excess of 15 kV on all I-O lines and include Fast Transient Burst protection.
The document provides specifications, absolute maximum ratings, and functional block diagrams for the ADM206E, ADM207E, ADM208E, ADM211E, and ADM213E models. It includes selection tables detailing driver/receiver counts, ESD protection levels, and shutdown/enable features, along with pin configurations and typical operating circuits for each model.
| Operating Voltage Range | +4.5 V to +5.5 V |
|---|---|
| Shutdown Supply Current | 0.2 pA to 5 pA |
| ESD Protection (I-O Pins) | +15 kV Human Body Model |
The devices operate from a single +5 V power supply.
Yes, they comply with the 89/336/EEC EMC Directive.
The devices offer +15 kV protection for air-gap discharge.
