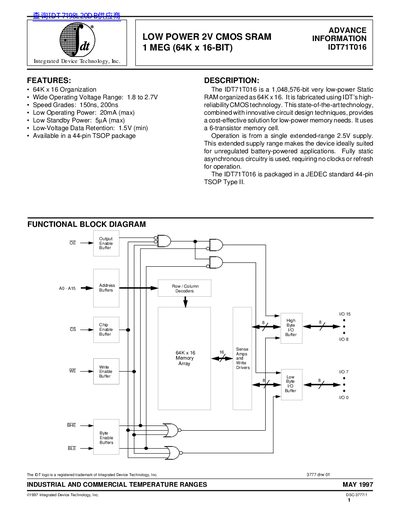

The IDT71T016 is a 64K x 16 very low-power Static RAM fabricated using IDT’s high-reliability CMOS technology. It features a wide operating voltage range, selectable speed grades, low operating power, low standby power, and low-voltage data retention. It is suitable for unregulated battery-powered applications.
The IDT71T016 is a very low-power Static RAM organized as 64K x 16, fabricated using high-reliability CMOS technology with a 6-transistor memory cell. It operates from a single extended-range 2.5V supply (1.8 to 2.7V), making it ideally suited for unregulated battery-powered applications where low standby power is critical.
| Organization | 64K x 16 |
|---|---|
| Operating Voltage Range | 1.8 to 2.7V |
| Speed Grades | 150ns, 200ns |
| Max Operating Power | 20mA |
| Max Standby Power | 5µA |
| Min Data Retention Voltage | 1.5V |
| Package Type | 44-pin TSOP |
The device supports low-voltage data retention down to a minimum of 1.5V.
The IDT71T016 is available in 150ns and 200ns speed grades.
Yes, the extended supply range makes it ideally suited for unregulated battery-powered applications.
