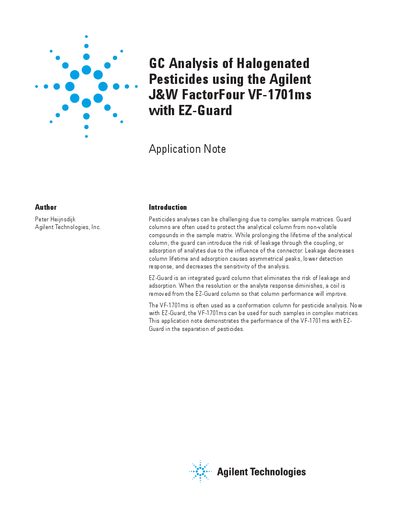

This application note demonstrates the performance of the VF-1701ms with EZ-Guard in the separation of pesticides.
This document describes the use of the Agilent J&W FactorFour VF-1701ms gas chromatography column equipped with an EZ-Guard integrated guard column for analyzing halogenated pesticides. The EZ-Guard design eliminates leakage and adsorption risks associated with traditional guard columns, thereby improving column lifetime and sensitivity. The VF-1701ms is noted as a common conformal column for pesticide analysis, and this note highlights its effectiveness with the EZ-Guard system for complex sample matrices.
| Column Dimensions | 30 m x 0.25 mm ID |
|---|---|
| Film Thickness | df=0.25 um |
| Guard Column Length | + 10 m EZ-Guard |
| Guard Column Part Number | CP9177 |
| Sample Size | 2 uL |
| Split Ratio | 1:50 |
| Sample Concentration | 0.1% in hexane |
| Final Temperature | 220°C |
| Carrier Gas | H2 |
| Carrier Gas Pressure | 90 kPa |
| Injector Temperature | 275 °C |
| Detector Temperature | 300 °C |
| Detector Type | ECD |
EZ-Guard eliminates the risk of leakage and adsorption, which decreases column lifetime and causes asymmetrical peaks, respectively.
The sample concentration was 0.1% in hexane.
