MX23L12811 is a 8M x 16-bit mask ROM with page mode (SOP only). It features random access time of 90ns (max.), page access time of 25ns (max.), and page size of 8 words per page. The pin configuration is 44 SOP (Word Mode Only).

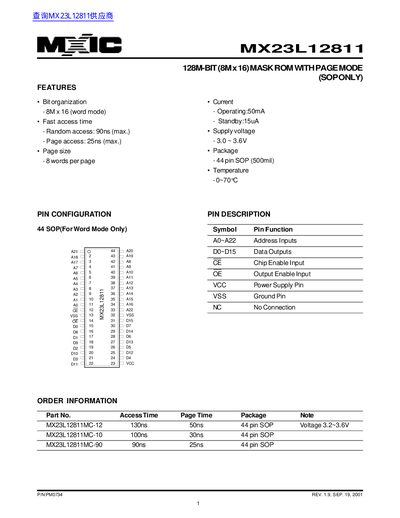

This document is a technical datasheet for the Macronix MX23L12811, an 8M x 16 (word mode) Mask ROM. The device features fast access times ranging from 90ns to 130ns depending on the specific part number and operates with a supply voltage of 3.0V to 3.6V.
| Bit Organization | 8M x 16 (word mode) |
|---|---|
| Random Access Time | 90ns max. |
| Page Access Time | 25ns max. |
| Operating Current | 50mA |
| Standby Current | 15uA |
| Operating Temperature | 0~70°C |
| Package Type | 44 pin SOP |
The maximum random access time is 90ns.
The maximum operating current is 50mA at 5MHz with all outputs open.
