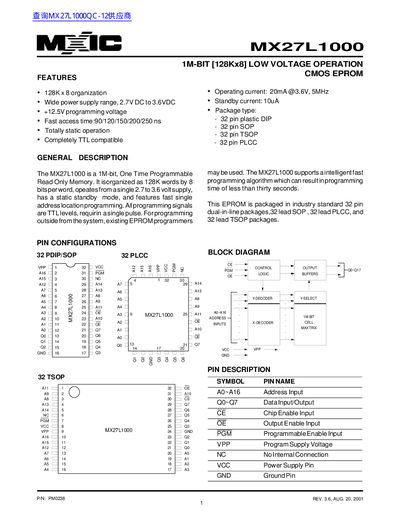

The MX27L1000 is a 1M-bit, One Time Programmable Read Only Memory. It is organized as 128K words by 8 bits per word, operates from a single 2.7 to 3.6 volt supply, has a static standby mode, and features fast single address location programming. All programming signals are TTL levels, requiring a single pulse. For programming outside from the system, existing EPROM programmers can be used.
The MXIC MX27L1000 is a 1M-bit (128K x 8) One Time Programmable Read Only Memory (OTP ROM) organized as 128K words by 8 bits per word. It operates from a single 2.7V to 3.6V DC power supply and features fast access times ranging from 90 to 250 nanoseconds depending on the speed grade. The device is available in 32-pin plastic DIP, SOP, TSOP, and PLCC packages.
| Organization | 128K x 8 |
|---|---|
| Power Supply Range | 2.7V DC to 3.6VDC |
| Programming Voltage | +12.5V |
| Operating Current | 20mA @3.6V, 5MHz |
| Standby Current | 10uA |
| Operating Temperature (Commercial) | 0°C to 70°C |
| Operating Temperature (Industrial) | -40°C to 85°C |
| Package Types | 32 pin plastic DIP, SOP, TSOP, PLCC |
The access time ranges from 90 to 250 nanoseconds depending on the specific speed grade.
Yes, the device is completely TTL compatible, requiring TTL levels for all programming signals.
The maximum VPP voltage for programming is 13.0V.
