The 74ABT16543 is a 16-bit dual enable (3-State) latched transceiver from Philips Semiconductors. It has two sets of D-type latches for temporary storage of data flowing in either direction. The device supports hot insertion/extraction, power-up 3-State, and power-up reset. Multiple VCC and GND pins minimize switching noise. Back-to-back registers are used for storage. Separate controls for data flow in each direction are provided. The 74ABTH16543 incorporates bus-hold data inputs that eliminate the need for external pull-up resistors to hold unused inputs.

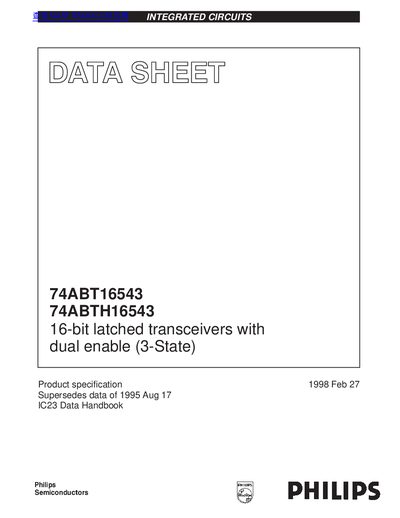

The document provides a product specification for the Philips 74ABT16543 and 74ABTH16543 integrated circuits. These are high-performance BiCMOS devices that combine low static and dynamic power dissipation with high speed and high output drive capabilities.
| Output capability (sink) | +64mA/-32mA |
|---|---|
| Latch-up protection | >500mA per JEDEC Std 17 |
| ESD protection (MIL STD) | >2000V per MIL STD 883 Method 3015 |
| Operating temperature range | -40°C to +85°C |
| Supply voltage (Vcc) | 4.5V to 5.5V |
Yes, live insertion/extraction is permitted with these devices.
The outputs are guaranteed to sink 64mA.
The device operates from -40°C to +85°C.
The maximum DC supply voltage is +7.0 V.
