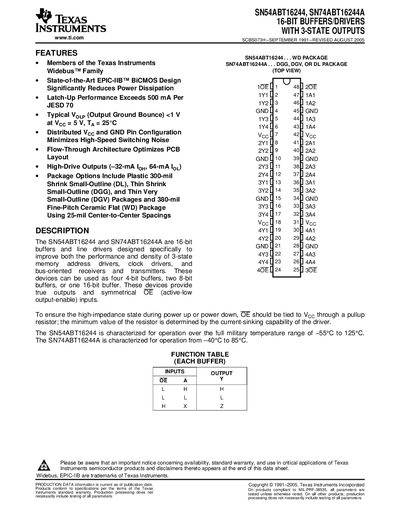

SN54ABT16244 and SN74ABT16244A are 16-bit buffers and line drivers specifically designed to improve the performance and density of 3-state memory address drivers, closed-loop control logic, and other high-speed applications.
The document describes the SN54ABT16244 and SN74ABT16244A as members of the Texas Instruments Widebus™ Family. These devices utilize an EPIC-IIB™ BiCMOS design to reduce power dissipation while providing high-drive outputs suitable for memory address drivers, clock drivers, and bus-oriented applications.
| Number of Bits | 16-bit |
|---|---|
| Output Type | 3-STATE OUTPUTS |
| Supply Voltage (Min) | 4.5 V |
| Operating Temperature (Military) | -55°C to 125°C |
| Operating Temperature (Commercial) | -40°C to 85°C |
| High-Level Output Current (SN54) | -32 mA |
The maximum recommended operating supply voltage is 5.5 V.
The device can sink up to 64 mA when the output is low.
This model operates from -55°C to 125°C.
