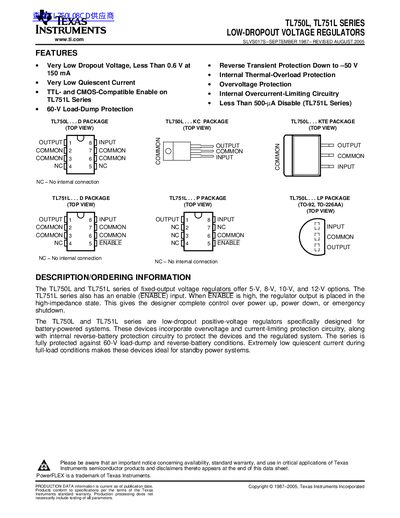

The datasheet introduces the features and characteristics of the TL750L and TL751L series low-dropout voltage regulators. The series regulators have options of 5V, 8V, 10V, and 12V, and the TL751L series also has an enable (ENABLE) input. When ENABLE is high, the regulator output is in the high-impedance state. This gives the designer complete control over power up, power down, or emergency shutdown. The TL750L and TL751L series are low-dropout positive-voltage regulators specifically designed for low-power applications.
The TL750L and TL751L series are fixed-output positive-voltage regulators designed specifically for battery-powered systems. They offer output voltages of 5V, 8V, 10V, and 12V with very low dropout voltage (less than 0.6 V at 150 mA) and extremely low quiescent current.
| Output Voltage Options | 5 V, 8 V, 10 V, and 12 V |
|---|---|
| Maximum Output Current | 150 mA |
The dropout voltage is less than 0.6 V when the output current is 150 mA.
Yes, the TL751L series includes an ENABLE input to control power up and down.
The maximum continuous input voltage rating is 26 V.
