SN54ABT16374A, SN74ABT16374A are 16-bit edge-triggered D-type bidirectional flip-flops with 3-state outputs specifically designed for driving highly capacitive or relatively low-impedance loads. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers. These devices can be used as two 8-bit flip-flops or one 16-bit flip-flop. On the positive transition of the clock (CLK) input, the Q outputs of the flip-flop take on the logic levels set up at the data (D) inputs.

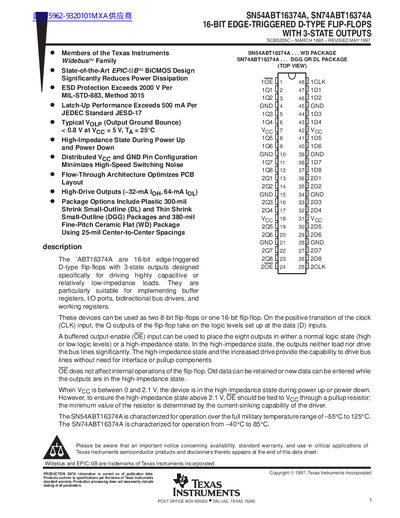

This document is a technical datasheet for the SN54ABT16374A and SN74ABT16374A devices. These are 16-bit edge-triggered D-type flip-flops with 3-state outputs, specifically designed to drive highly capacitive or relatively low-impedance loads. They are suitable for applications such as buffer registers, I/O ports, bidirectional bus drivers, and working registers.
| Operating Temperature Range (SN54ABT16374A) | -55°C to 125°C |
|---|---|
| Hold Time (Data after CLK) | 1.3 ns |
Yes, the devices can be configured to function as either two 8-bit flip-flops or one single 16-bit flip-flop.
The typical output ground bounce (Vop) is less than 0.8 V when Voc is 5 V and Ta is 25°C.
