TEXAS INSTRUMENTS SN54ABT16541 SN74ABT16541A 16-BIT BUFFERS/DRIVERS WITH 3-STATE OUTPUTS handbook

About this manual

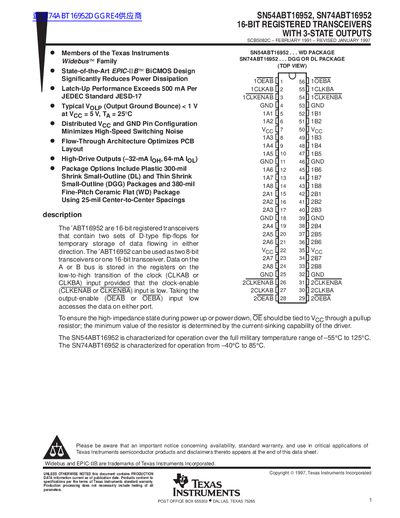

The SN54ABT16952 and SN74ABT16952 are 16-bit registered transceivers containing two sets of D-type flip-flops for temporary storage of data flowing in either direction. They can be configured as two 8-bit transceivers or one 16-bit transceiver. Data transfer occurs on the low-to-high transition of the clock input, provided the clock-enable input is low.

What's inside

• Description
• Function Table
• Logic Symbol
• Logic Diagram
• Absolute Maximum Ratings
• Recommended Operating Conditions
• Electrical Characteristics
• Timing Requirements
• Switching Characteristics
• Parameter Measurement Information

Specifications

Frequently asked questions

What is the maximum clock frequency for these transceivers?

The device supports a maximum clock frequency of 150 MHz.

How much current can the SN74ABT16952 sink from an output in the low state?

The device can sink up to 64 mA when the output is low.

What are the operating temperature ranges for the SN54ABT16952 and SN74ABT16952?

The SN54ABT16952 operates from -55°C to 125°C, while the SN74ABT16952 operates from -40°C to 85°C.
