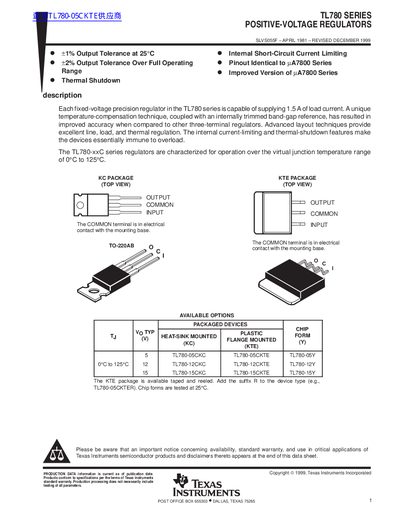

This document is the TL780 series positive voltage regulator manual, which introduces the features and characteristics of the series products, including ±1% output tolerance, ±2% output tolerance, thermal shutdown, internal short circuit current limiting, pinout identical to µA7800 series, improved version of µA7800 series
The TL780 series consists of fixed-voltage precision regulators capable of supplying 1.5 A of load current. These devices feature an internally trimmed band-gap reference and a unique temperature-compensation technique, offering improved accuracy over other three-terminal regulators. They include internal short-circuit current limiting and thermal shutdown features to ensure immunity to overload conditions.
| Output Current | 1.5 A |
|---|---|
| Operating Temperature Range | 0°C to 125°C |
| Short-Circuit Output Current (TL780-05C) | 750 mA |
The output voltage has a +1% tolerance at 25°C.
Yes, the device includes internal short-circuit current limiting and thermal shutdown features.
