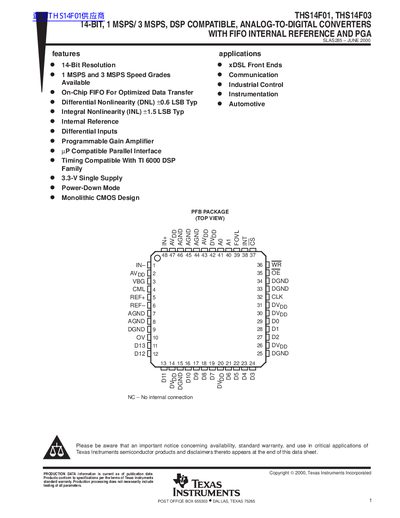

14-bit, 1 MSPS/ 3 MSPS, DSP compatible, analog-to-digital converters with FIFO internal reference and PGA
The THS14F01 and THS14F03 are 14-bit, single-supply analog-to-digital converters designed for use with 3.3-V systems and high-speed DSPs like the TI TMS320C6000 series. These devices feature a FIFO, internal reference, differential inputs, a programmable input gain, and an on-chip sample and hold amplifier.
| Resolution | 14 Bits |
|---|---|
| Integral Nonlinearity | +1.5 LSB Typ |
| Clock Frequency (THS14F01) | 1 MHz |
| Analog Input Bandwidth | 140 MHz |
| Package | TQFP-48 |
The resolution is 14 bits.
Yes, the device features an internal reference.
