THS1230 is a 12-bit, 30MSPS low-power ADC from Linear Technology. It operates with a supply voltage of 3.3V. THS1230 has three input modes: single-ended, single-ended with offset and differential. It can be configured to support a variety of input functions. It also provides an internal voltage reference and an external reference interface. Users can choose between the internal and external reference voltage according to application requirements. THS1230 also has an out-of-range detection function and a power-down mode, making it suitable for use in a variety of applications such as video, multimedia, high-speed acquisition and communications.

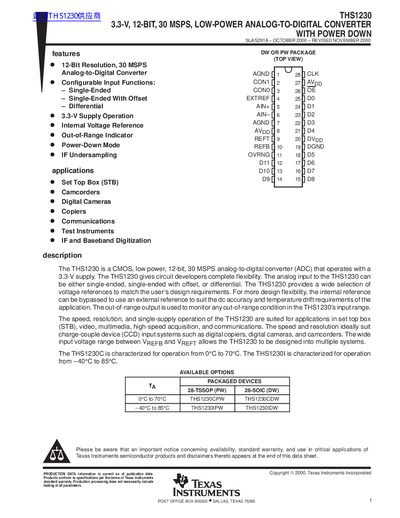

The THS1230 is a CMOS, low-power, 12-bit, 30 MSPS analog-to-digital converter (ADC) that operates with a 3.3-V supply. It features configurable input functions including single-ended, single-ended with offset, and differential modes. The device includes an internal voltage reference that can be bypassed for an external reference, and an out-of-range indicator to monitor input conditions.
| Resolution | 12 Bits |
|---|---|
| Operating Temperature (Commercial) | 0°C to 70°C |
| Operating Temperature (Industrial) | -40°C to 85°C |
| Analog Input Bandwidth | 180 MHz |
The device is available in 28-TSSOP (PW) and 28-SOIC (DW) packages.
Yes, the internal reference can be bypassed to use an external reference to suit accuracy and temperature drift requirements.
