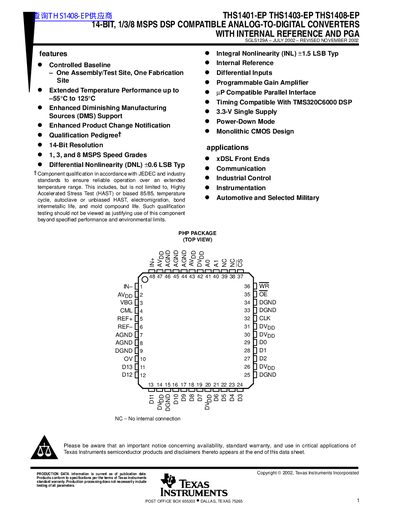

14-bit, 1/3/8 MSPS DSP compatible analog-to-digital converters with internal reference and PGA
The THS1401, THS1403, and THS1408 are 14-bit, 1/3/8 MSPS, single supply analog-to-digital converters featuring an internal reference, differential inputs, and a programmable input gain. Implemented with a CMOS process, these devices are designed for use with 3.3-V systems and high-speed LLP compatible parallel interfaces, making them suitable for high-performance DSPs like the TMS320C6000 series.
The document provides detailed electrical characteristics, including resolution, differential nonlinearity, integral nonlinearity, effective number of bits, and signal-to-noise ratio across various clock frequencies. It also includes terminal functions, absolute maximum ratings, recommended operating conditions, timing diagrams for sample and read operations, and mechanical data for the PHP package.
| Resolution | 14 Bits |
|---|---|
| Effective Number of Bits | 11.2 to 11.5 Bits |
| Analog Input Bandwidth | 140 MHz |
| Clock Frequency (THS1408) | 8 MHz |
The devices have a resolution of 14 bits.
The THS1408 supports a clock frequency of 8 MHz.
Yes, the devices feature an internal reference with a bandgap voltage of 1.5 V typical.
