This document describes the technical specifications of a super fast rectifier, including voltage range, current, features, and characteristics. The rectifier features low switching noise, low forward voltage drop, low thermal resistance, high current capability, super fast switching speed, high reliability, and is suitable for switching mode circuits.

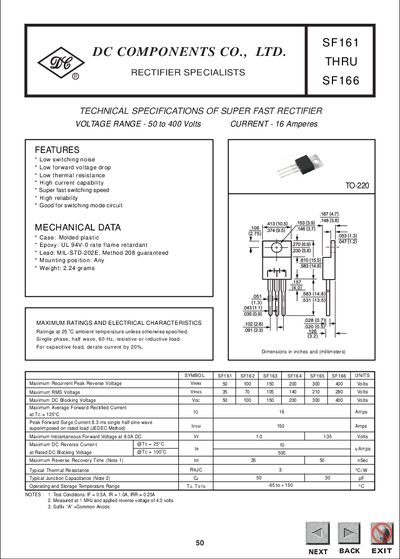

This datasheet provides technical specifications for the DC Components SF161 through SF166 Super Fast Rectifier series. The devices are designed for switching mode circuits and feature low switching noise, low forward voltage drop, and high current capability. The voltage range covers 50 to 400 Volts with a current rating of 16 Amperes.
| Voltage Range | 50 to 400 Volts |
|---|---|
| Current | 16 Amperes |
| Operating Temperature Range | -65 to +150 |
| Case Material | Molded plastic |
| Epoxy Rating | UL 94V-0 |
| Weight | 2.24 grams |
The maximum average forward rectified current is rated at 16 Amperes.
The device can operate at a maximum junction temperature of 125°C.
The maximum peak forward surge current is 8.3 Amperes for an 8.3 ms single half sine-wave.
