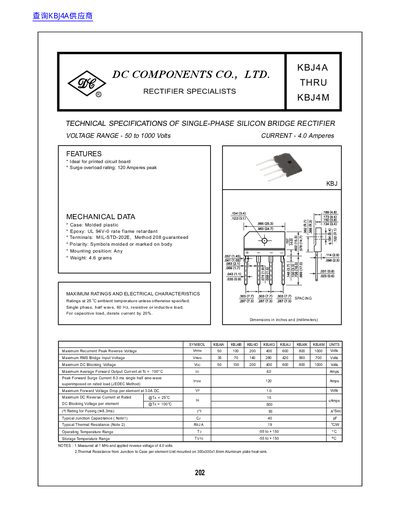

The document provides technical specifications for DC Components' KBJ4A through KBJ4M series of single‑phase silicon bridge rectifiers, highlighting features such as suitability for printed‑circuit‑board mounting and a 120 A peak surge overload rating.
Detailed electrical ratings include voltage ranges up to 1000 V, continuous current of 4 A, forward voltage drop, reverse current, and thermal characteristics, together with mechanical data, temperature limits, and characteristic curves for forward surge and reverse behavior.
| Voltage range | 50–1000 V |
|---|---|
| Continuous current rating | 4.0 A |
| Surge overload rating | 120 A peak |
| Case material | Molded plastic |
| Flame‑retardant rating | UL 94V‑0 |
| Weight | 4.6 g |
They cover a voltage range of 50 to 1000 volts.
The rectifiers are rated for a continuous current of 4.0 amperes.
They can handle a surge overload of 120 amperes peak.
