This datasheet provides the technical parameters of SK12 series Schottky diodes, including maximum recurrent peak reverse voltage, maximum RMS voltage, maximum DC blocking voltage, maximum average forward rectified current, maximum instantaneous forward voltage, maximum forward surge current, typical junction capacitance and typical thermal resistance.

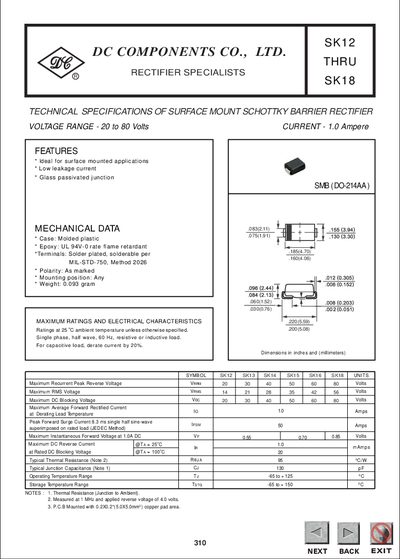

This datasheet provides technical specifications for the DC Components SK12 through SK18 series of Surface Mount Schottky Barrier Rectifiers. The devices are designed for surface-mounted applications, featuring a low leakage current and a glass passivated junction to ensure reliability.
The document details mechanical data for the SMB (DO-214AA) package, including dimensions and material properties such as UL 94V-0 flame retardant epoxy. It also lists maximum ratings and electrical characteristics, specifying operating temperatures from -65°C to +125°C and storage temperatures up to +150°C.
| Voltage Range | 20 to 80 Volts |
|---|---|
| Current Rating | 1.0 Ampere |
| Package Type | SMB (DO-214AA) |
| Operating Temperature Range | -65 to + 125 |
| Storage Temperature Range | -65 to + 150 |
The maximum average forward rectified current is rated at 1.0 Ampere.
The device operates within a temperature range of -65 to +125 degrees Celsius.
The maximum instantaneous forward voltage at 1.0A DC is specified in the electrical characteristics table.
